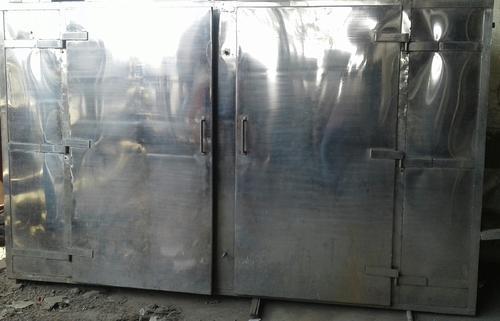

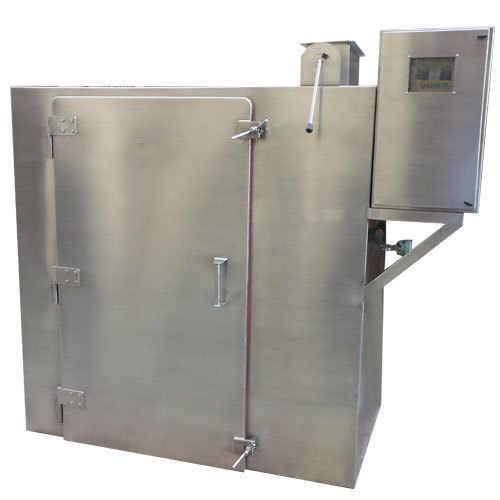

SS Tray Dryer
SS Tray Dryer
Designed For Uniform Circulation Of Hot Air In The Drying Chamber. Electrical / Steam / Oil Heating Mode. Inside Surface Is Painted With Heat Resistant Aluminum Paint And Out Side With Synthetic Enamel. CGMP Models With SS 316 Construction, Single Page Design Fully Washable Type Models Available. Inside Of The Dryer. If Consists Of Starters, Contactors, Safety Relays, Ckt Breakers, Indicating Lamps, Push Buttons, Timers, Controllers Etc. Construction: External Tray Dryer: 2mm Thick Internal: 2mm Thick Moc: CGMP Surface Finish: External Tray Dryer: Buffed To 150 Grit Matt Finish Internal Tray Dryer: Buffed To 220 Grit Mirror Finish. Inlet & Outlet: Inlet And A Manually Infinite Adjustable Damper At The Outlet. Door: Doors At Provided At The Front And / Or Rear Side Of The Dryer Door Lips Are Lined With Silicon Rubber Gasket To Prevent Any Leakages Suitable Locking Is Provided For The Doors Of Tray Dryer. Air Circulation: Air Circulation Is Done By Specially Designed Recirculation Blowers Inside The Tray Dryer The Blower Capacity, Static & Design Depends On The Size And Model Of Dryer. Heating: Dryers Are Normally Supplied With Either Steam/ Electric/ Thermic Fluid / Hot Water Heating System. Suitable Heating Coils / Caloriefiers Are Provided In The Tray Dryers. Technical Specifications: Models TD-12 TD-24 TD-48 TD-96 TD-192 Loading Capacity 12 Trays 24 Trays 48 Trays 96 Trays 192 Trays External Dimension W D H In Mm 1370X530X940 1370X940X940 1980X1020X1880 3320X1900X1880 3320X1900X1880 Internal Dimension In Mm 840X430X840 840X860X840 1020X930X1830 1960X930 X1830 1960X930X1830 No Of Doors One One One Two Two No Of Blowers One Two One Two Four
